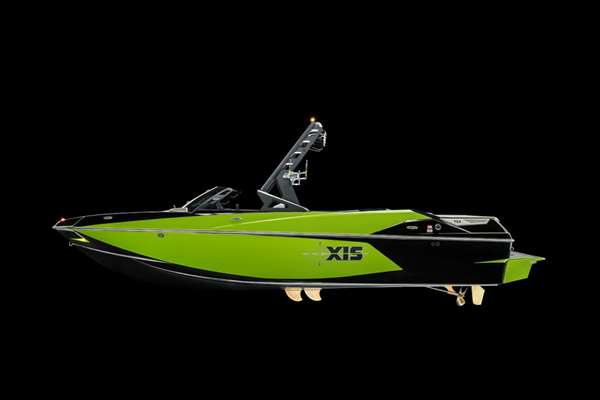

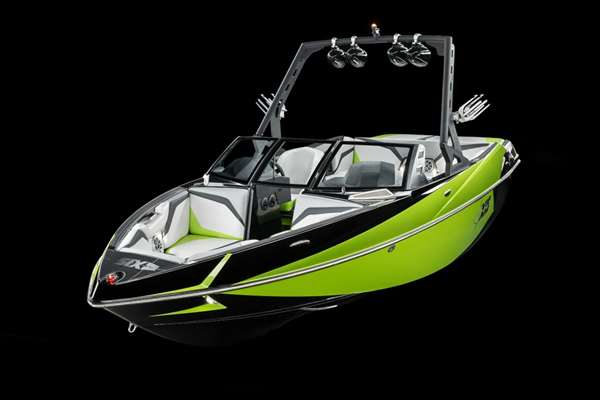

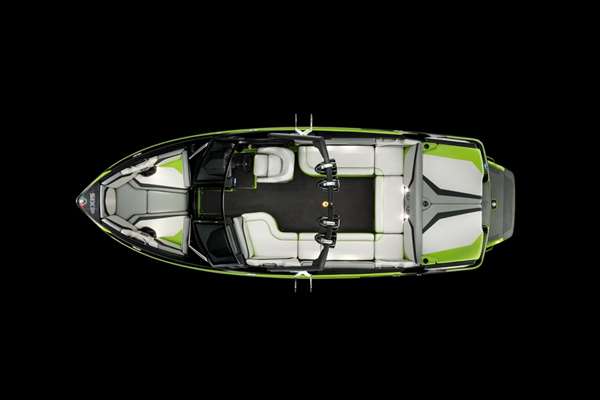

AXIS T23 | BIG CLASSIC
The Axis T23 just might be the best value in a 23- footer in all of watersports. It's a traditional-bow model like the T22, but adds another 17 inches of length to give you stretch-out, walk-around room for up to 16 people. It's pro wake surfer Johnny Stieg's favorite boat, so you're assured of killer waves. Big Monsoon power comes standard, of course. Everything about the T23 is big, except the price.
The Axis PSP (Performance Surf Package) incorporated into this Axis T23 provides you with the ability to create your own waves wherever and whenever you want, and control their size, length, shape and speed.
The P.S.P. starts with the Wake Plus hull design engineered for this T23 model. Combine this with wave engineering running surfaces and customised swim platforms. Then, for a bigger wake flip a switch to fill the Hard-Ballast system for wake-creating ballast. Get the fore and aft Plug'n'Play ballast option to add another 570 kgs. for the biggest wake you've ever seen, equip your Axis T23 with the Auto-Set Wedge hydrofoil. Drop the wedge in the water and instantly gain another 455 kgs of wake-generating water displacement.
Wait until you see how easy it is to turn that wake into an endless, customisable wave for surfing. Drop the Wedge and then flip a switch to activate Surf Gate. That's it. The Surf Gate's high-speed hydraulic actuators let you quickly shift the wave from side to side for regular or goofy styles.
With the P.S.P. and Surf Gate, the driver can dial in the wakes and waves to make the perfect watersports playground for any rider, every time. Here's the big news for 2017: We've made the Surf Band wrist remote available for all Axis boats. Wearing the Surf Band, the rider can control the Surf Gate, speed and stereo volume right from the board.
Also new for 2017 - a striking new dash design with glowing white 3-in-1 gauges gives the cockpit a classic sporty look. There's more function with a new central touch screen that integrates menu navigation, Surf Gate control, speed control and more. A new panel of soft-key switches puts major controls at the driver's fingertips, and new helm and transom remotes for the audio system let the driver or passengers adjust the music.
Axis is Centered on you, providing all the performance you need and nothing you don’t.
| Length (excl. Platform) | 23'5" / 7.14 m |
| Length (incl. Swim Platform) | 27'7" / 8.41 m |
| Beam | 102" / 2.59 m |
| Weight | 4,200 lbs / 1,905 kgs |
| Draft | 27" / 0.69 m |
| Standard Ballast | 900 lbs / 408 kgs |
| Maximum Ballast | 3,550 lbs / 1,610 kgs |
| Optional Bow Ballast | TBC |
| Optional Plug'n'Play | 1,650 lbs / |
| Optional Power Wedge II | 1,000 lbs / |
| Hull Type | Wake Plus |
| Fuel Capacity | 261 ltrs |
| Maximum People | 16 |
| Disclaimer |
|
- Axis P.S.P. Wake & Surf Platform
- New 2017 Designed Helm
- New Updated Interface Software
- New Windshield
- New Glove Box
- Speed Control
- AW15 Tower
- Livorsi Electronic Throttle
- SkyBox Slide Seating
- Above-Engine Warming Bin With Drain
- Swivel Helm Seat
- LED Storage Lighting
- Wakebox Hard-Tank Hi Flo Ballast System
- Single Shark Fin
Propellors
Standard - CNC Nibral 4 Blade 15 x 1575 - 2277
High Altitude 15 x 1425 - 2249 - Optn Auto Selected w/Vandall
Torque 15 x 12 - 2313
Torque 15 x 1425 - 2249 - Diesel & Monsoon 555
Engine Accessories
Standard Exhaust
STE - Silent Tip Exhaust (only with CE optn)
Exhaust - Surf Pipe
Sea Strainer (Optn, Auto Selected w/SWS)
Flush Kit - Transom Install (Optn, Auto Selected w/SWS)
Heater, 2-Outlet (Optn. Auto Selected w/Vandall Ed.)
Heater, 3-Outlet
Additional Heater, 2-Outlet
Canvas Covers
CS Bimini Top and Boot - w/Rope Storage (2 Pockets) (Optn. Auto Selected w/Vandall)
CS Bimini Top and Boot - w/Rope Storage and Surf Board Storage
GL Bimini Top and Boot
GL Bimini Top and Boot - w/Surf Board Storage
Z5 Bimini and Cargo Rack
GL Tonneau Cover - Gray
CS Boat Cover - w/Black Zip Cleat and Fuel Fill Pockets
GL Boat Cover - w/Pleated Pockets w/Hang-Tyte
Boat Cover - no Tower
Shrinkable Shipping Cover
Cockpit Options
Seat Bolster - Flip Up (Drivers) (Optn. Auto Selected w/Vandall)
Drop In Cooler - Igloo (Optn. Auto selected w/Vandall)
Cup Holders - Black
Cup Holders - Stainless (Optn. Auto Selected w/SWS)
Deck Trac - Nonskid (Complete Deck Kit)
Depth Finder (Optn. Auto Selected w/Vandall)
Cockpit Flooring - Removable Carpet (Charcoal) (Std w/Vandall)
Cockpit Flooring - AquaFusion - Titanium
Cockpit Flooring - DeckADence
Mirror & Windshield Mount - PTM 14 in - Black Composite
Mirror & Windshield Mount - PTM Panoramic 140 Degree ABS

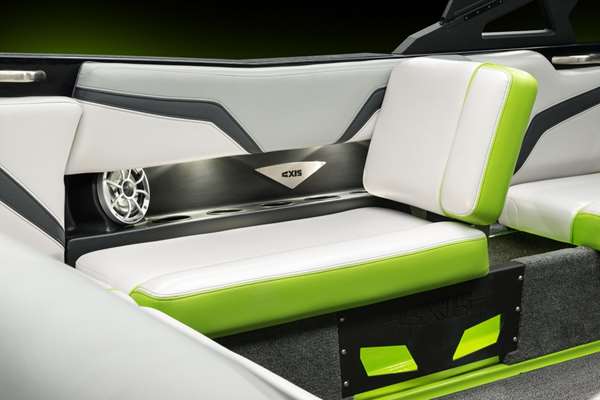

ChillAX Cockpit Flip Up Seat (Optn. Auto Selected w/SWS)

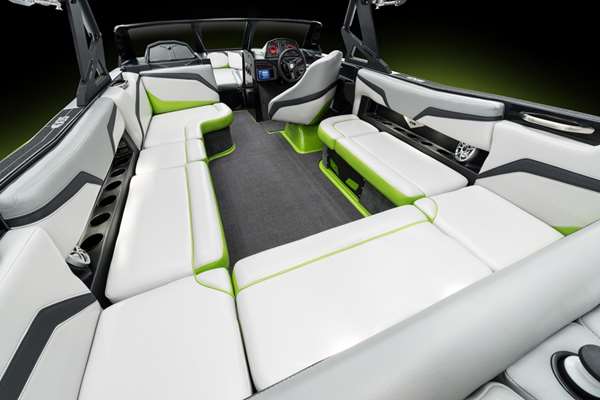

Rear Slide SKYBOX Seating
Zero Off GPS Cruise and Compass
Speedo - KPH (International only)
Speedo - MPH
Graphics

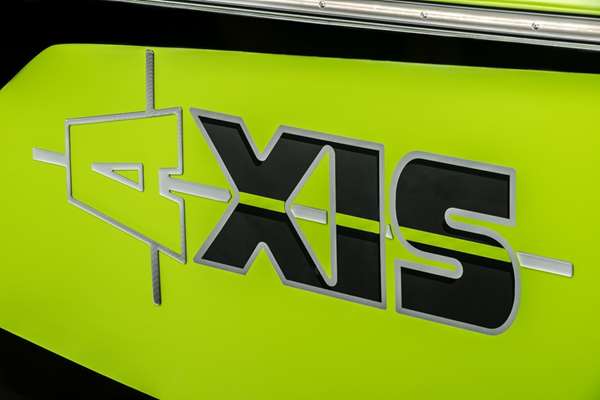

Graphics - AXIS Mid-Ship Decal
Liquid Force Edition
Hardware
Grounded Bonded Sacrificial Anodes (OptnAuto Selected w/SWS)
Battery - 500 CCA (Taylor Deep Cycle)
Battery - 800 CCA (Taylor Deep Cycle)
Dual Batteries - 500 CCA & 800 CCA
Battery Charger (European)
Dual Battery Switch (cable and boxes included)
Pull Up Cleats - Two Pair (Optn. Auto Selected w/Vandall)
Pull Up Cleats - Three Pair
Fire Suppression System (Optn. Auto Selected w/ CE)
Ski Pylon
Hydraulic Steering (Optn. Auto Selected w/SWS)
Lighting
Docking Lights (Optn. Auto Selected w/Vandall)
Storage Lights
Underseat Lighting - Blue
Underseat Lighting - Red
Underseat Lighting - White
Underwater Lighting
Stereo Components
Stereo Option - 1 (AutoVolume) (n/a with Tower Speakers)
Stereo Option - 2 (AutoVolume) (Optn. Auto Selected w/Vandall)
Stereo Option - 3 (AutoVolume)
Stereo Remote - Transom (Std with Stereo Optn 2 & 3)

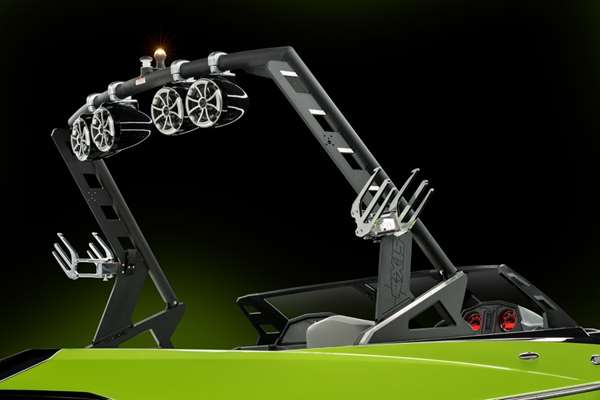

Tower
AW15 Tower - Black
AW15 Tower - Charcoal
AW15 Tower - White
No Tower Credit
Tower Light Bar
Mirror - PTM Panoramic 140 Degree - Black
Mirror - PTM Panoramic 140 Degree - Charcoal
Mirror - PTM Panoramic 140 Degree - White

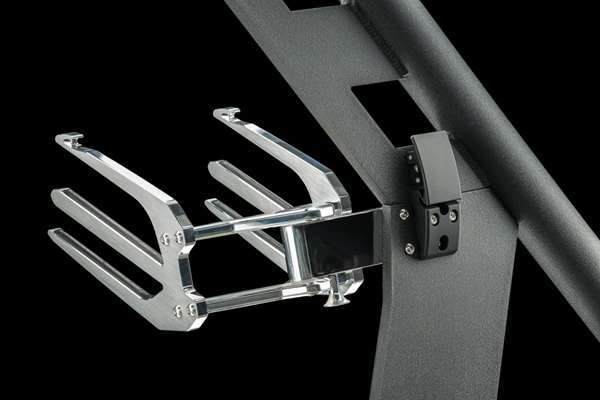

Rack - Fixed Combo Rack - Low Rider II (PL)
Rack - Spinner Board Racks (PL)
Rack - Fixed Combo Rack - Low Rider II (PU)
Rack - Spinner Board Racks (PU) (Optn. Auto selected w/Vandall)
Rack - Fixed Combo Rack - Low Rider II (SL)
Rack - Spinner Board Racks (SL)
Rack - Fixed Combo Rack - Low Rider II (SU)
Rack - Spinner Board Racks (SU) (Optn. Auto Selected w/Vandall)
Speakers - Wet Sounds Icon 8 - 2 pair - Black (Only w/Stereo optn 2)
Speakers - Wet Sounds Icon 8 - 2 pair - White (Only w/Stereo optn 2)
Speakers - Wet Sounds Rev 410 - 2 pair - Black (Only w/Stereo optn 3)
Speakers - Wet Sounds Rev 410 - 2 pair - White (Only w/Stereo optn 3)
Tower Support Connector - Knobs
Tower Support Connector - Quick Release Latch
Wake Technology
Wakebox 3 Tank Ballast System - HI FLO
Rear Plug N Play Ballast Plumbing - HI FLO (Optn. Auto Selected w/ Vandall)
Rear Plug N Play Ballast Plumbing - HI FLO w/Auto Vent
Gorilla Tracking Fin (2nd)
Surf Gate w/Axis Surfband
Wedge Auto-set with Position Indicator (must also order Wedge)(Optn. Auto Selected w/Vandall)
Misc Options
Centered On You Album
CE Package - International only
AW15 Tower Storage Pole
Wash Down Kit (Optn. Auto selected w/SWS)
Special Instructions - Approval required Possible Warranty Exceptions Additional charges may apply
Trailer
No Trailer Credit
Stationary Shipping Cradle
Tandem Axle Trailer
Two-Tone - Please Select Accent Color (optn. Auto Selected w/Vandall)
Bow Step
Elite Shield Coating Fender Only
Elite Shield Coating Trailer and Fender
Elite Shield Coating Trailer and Fender
Stainless Fenders
Galvanization - Axles Only (Twin)
Galvanization Frame, Axle and Fender
Brakes - Electric Hydraulic
Runway Lights (Optn. Auto Selected w/Vandall)
Lighting Bezel Color - Please Choose Color
Spare Wheel - 14 in Alloy w/Side Carrier
Spare Wheel - 14 in Machined Black Premium Allow w/Side Carrier
Spare Wheel - 14 in Steel w/Side Carrier
Spare Wheel - 18 in KMC Rockstar 2 w/Side Carrier
Spares Wheel
Spare Wheel - Side Carrier - Mount Only
Trailer Wheels - 14 in Steel
Trailer Wheels - 14 in Black Machined Premium Alloy - Twin Axel
Trailer Wheels - 14 in Black Machined Premium Alloy - Triple Axel
Trailer Wheels - 14 in Alloy - Twin Axel
Trailer Wheels - 14 in Alloy - Triple Axel
Trailer Wheels - 18 in KMC Rockstar 2 - Twin Axel
Trailer Wheels - 18 in KMC Rockstar 2 - Triple Axel (optn. Auto Selected w/Vandall)
Transom Step
Transom Tie Down SS Ratchet w/ Retractable Straps (Optn. Auto Selected w/Vandall)
Tread Plates Aluminum (Optn. Auto Selected w/Vandall)
Tread Plates Soft Grip
Turn Signals
Turn Signals (Amber)
Hidden Wheel Chock
Monsoon 450 6.0L HO CAT Closed Cooling SWS
Monsoon 450 6.0L HO CAT
Monsoon 410 6.0L CAT
Monsoon 410 6.0L CAT Closed Cooling SWS
Monsoon 555 6.2L LSA Supercharged NC (n/a CA Dealers)
Johnny Stieg
"The new T23 is incredible. It kicks up one of the best surf wakes ever. The wave is always long, tall, and powerful. And this is a big boat. There's a ton of space for all your friends and gear. I can ride behind this thing all day. Everything is always dialed." Johnny Stieg | Axis Pro Team
WaterSki Mag

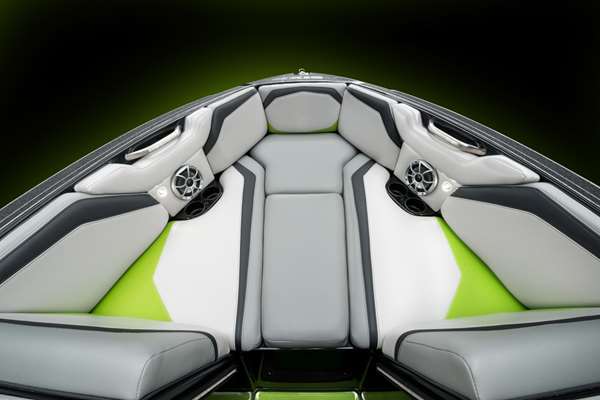

Almost 2 feet longer than the other traditional-bow Axis, the T23 is deceptively big. It’s perfect for those who crave a traditional bow with a big wake and surf potential that’s low maintenance and a great value.
The traditional bow gives the T23 that classic inboard look, but it’s an Axis, so you’re getting a lot of boat for the price. If you love the ease of use, wake performance and value of the bigger Axis boats, but you want a pointed bow, look no further than the T23. The dash was redesigned for 2016 to be more sleek and clean than in years past, but it still has that classic Axis simplicity, making it easy to get in and use the first time. Switches and gauges are analog, and the digital display confirms your settings. It’s absolutely functional. Surf Gate is technically an option, but we consider it a necessity on the entire Axis line because it works exceptionally well with these hulls. Keep the boat evenly weighted and flip the toggle switch at the dash to make a wave. It’s that easy. It also switches faster than last year because of a new actuator, so transfers are within reach more than ever before on the T23.
